Product Description

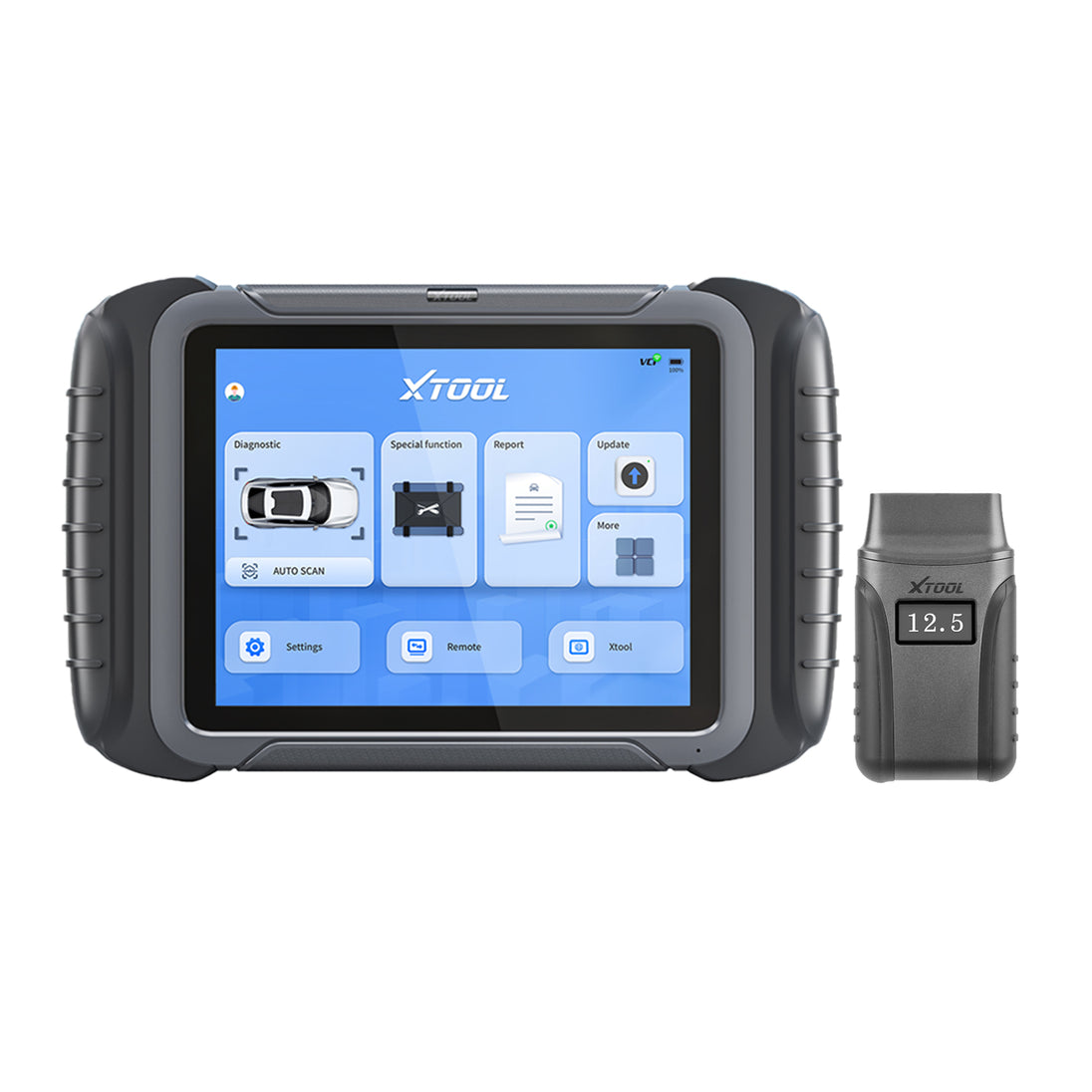

XT80 is an automotive smart diagnostic system with 8-inch LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 85 brands, 10000 cars.


1. Bi-Directional Control

  • Receive information and send the commands to the system/components to perform active tests like EVAP Test, Fuel Pump Test, Fuel Injector Test, Cycling A/C Clutch On/Off, Cooling Fan Test, etc.

2. Full-System Diagnostic

  • Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus

3. Offline Programming Supported

  • Support programmable module installation for Ford, Lincoln and Mazda

4. 35+ Maintenance Functions

  • Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, etc.


  • Operating System: Android 10

  • Processor:4 Core 1.50GHz

  • Memory:4G RAM, 64 ROM

  • Display:8-inch capacitive touch screen with 1024×768P resolution

  • Communication Method: Wired

  • Connectivity:WIFI 2.4/5G | DB15 to VAG USB

  • Camera:Rear camera, 8.0 Megapixel, AF with Flashlight

  • Sensors: Gravity Accelerometer, Ambient Light Sensor

  • Auto Input/Output: Microphone, Speaker

  • Working Voltage:3.6 to 4.2V

  • Operating Temperature:-10 to 40℃

  • Storage Temperature:-40 to 60℃

  • Humidity:<90%

  • Dimension (L×W×H):274.0×175.0×33.8 mm

  • Protocol: CANFD, DOIP

Packing list

  • Tool kit

  • Certificate of Quality

  • Packing List

  • Quick Start Guide

  • Carton

  • XV100 Endoscope (Separate packaging)

  • Power adapter

  • US power cable

  • EU power cable

  • UK power cable

  • P804 tablet

  • USB cable

  • OBDII-16 Adapter

  • DB15 Main Cable
